PS5 HDMI Port Repair in Springfield, MA: Cost, Timeline & When to DIY vs. Call Us

Your PS5 shows up on the TV. The controller syncs. But when you plug in the HDMI cable—nothing. No signal. No picture. Just a black screen and mounting frustration.

A dead HDMI port is one of the most common PS5 failures, especially for consoles that get moved, bumped, or pulled on regularly. The good news: it's fixable. The better news: repair costs far less than buying a new console.

PHYX Device Repair in Springfield handles PS5 HDMI port repairs regularly. We'll diagnose the issue, explain your options, and get your console back online fast.

What Kills a PS5 HDMI Port

Physical damage from movement. The HDMI port is solder-connected to the motherboard. Each time you yank or bend the cable, you stress those connections. Over time, a pin breaks or a solder joint cracks.

Repeated plugging and unplugging. HDMI ports aren't designed for constant disconnecting and reconnecting. Friction wears the contacts. Eventually, the connection fails intermittently, then stops working.

Loose cable contacts. This is less common but fixable: if the port's spring contacts weaken, they stop gripping the cable. Dirt or corrosion inside the port also blocks signal.

Manufacturing defect. Some consoles ship with weak solder joints on the HDMI port. These fail under normal use within weeks or months.

How to Tell It's Actually the HDMI Port

Your TV says "No signal" or "HDMI input not found."

Plug a different HDMI cable into the PS5. If it still doesn't work, and other devices (cable box, Blu-ray, Switch) work fine in that same TV input, your PS5's HDMI port is dead.

The cable wiggles inside the port.

A healthy HDMI port grips the cable firmly. If the cable moves around loosely, the spring contacts have weakened. Signal dropout or total failure follows.

You see arcs or sparks when plugging in.

This is rare but serious. It means a shorted connection inside the port. Stop using the console immediately and get it to a repair shop.

Troubleshooting steps that don't help:

• Different HDMI cables
• Different TV inputs
• Restarting the console
• Unplugging and re-plugging the power

If none of that fixes it, the port hardware has failed.

Why DIY HDMI Port Repair Usually Fails

The port is soldered to the motherboard.

You can't unscrew it or pop it out. Fixing it requires desoldering the broken port, installing a new one, and re-flowing solder joints with precision equipment. One wrong temperature or movement and the entire motherboard fries.

Most online tutorials show cheap fixes that don't work long-term.

Videos suggesting you "wiggle the cable" or "blow compressed air inside" don't address the real problem: a physical break in the solder joints or worn spring contacts. These are band-aids, not repairs.

Replacement port costs are cheap, but skill isn't.

A replacement HDMI port assembly costs $5–$15. The labor and equipment to install it safely? That's where professionals earn their fee. One slip of the soldering iron and you've destroyed a $500 console.

Warranty voids immediately.

Opening your PS5 voids Sony's warranty. If the repair goes wrong, you've turned a $60–$100 fix into a $500 paperweight. Sony won't touch it after that.

PS5 HDMI Repair at PHYX: Cost, Timeline & What to Expect

Why PHYX Does PS5 HDMI Repair Right

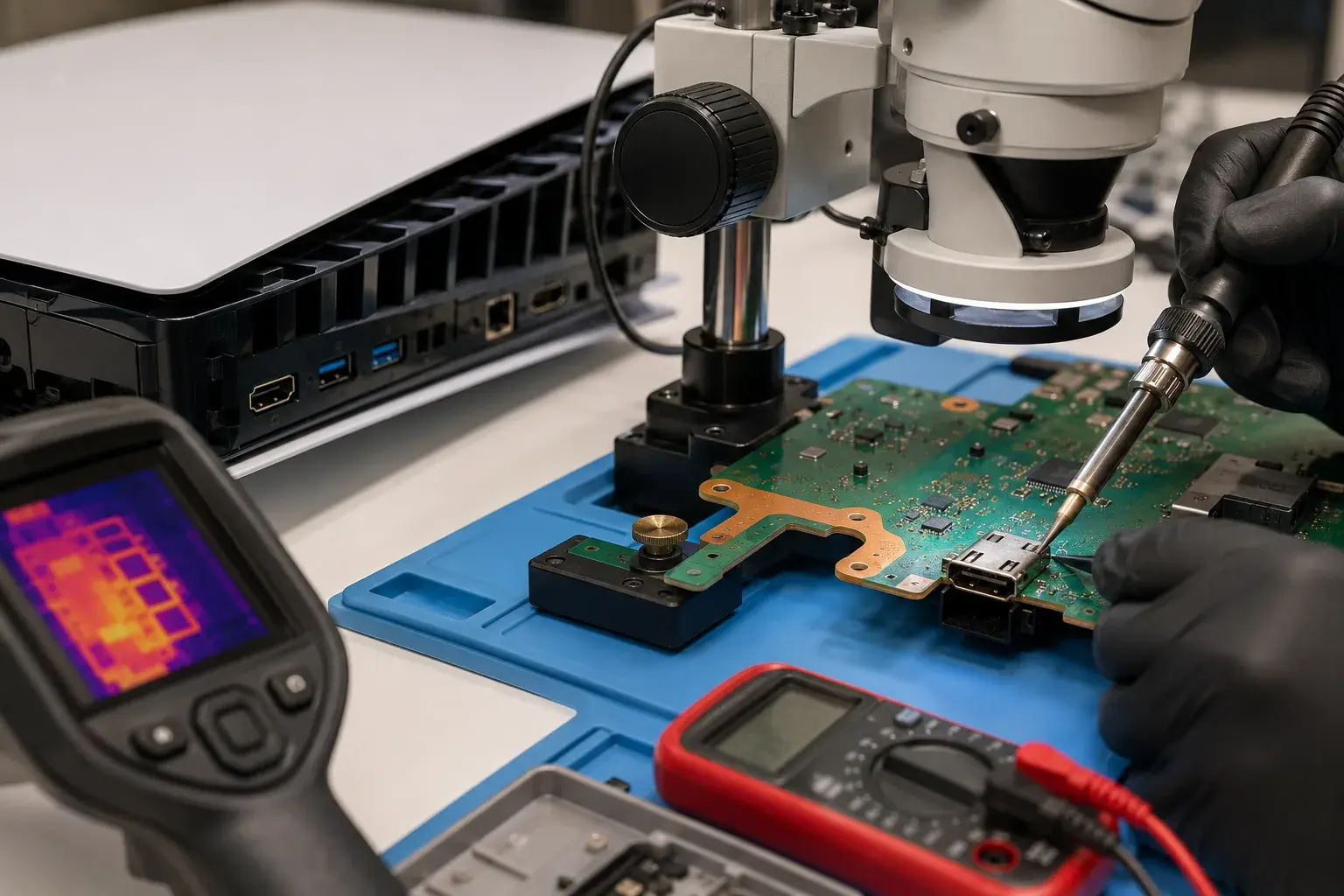

We have the equipment. SMD soldering stations with temperature control, thermal imaging for diagnosing heat damage, and diagnostic boards to test the repair before we hand your console back.

We don't guess. We diagnose the exact problem—loose contacts, broken solder joints, bent port pins—and fix only what's broken. No unnecessary part replacement.

Most repairs are done in 1-2 business days. Not weeks. Not shipped off-site. We handle it in Springfield and you walk out with your PS5 ready to play.

We stand behind the work. PHYX guarantee: "If something's not right after the repair, we will take another look. We stand behind our work." HDMI ports are what we call "one and done." That means 0.5% of our work is returned with HDMI issues, so if it were to stop working it's usually because of user error and would have to be paid for again.

We price it fairly. No surprise fees. Diagnostic work, parts, and labor are all included in the quote. A 3.5% card processing fee applies, but that's it.

Common PS5 HDMI Problems We Solve

• Intermittent signal loss — Cable works for 5 minutes, then goes black. Usually a loose contact or hairline solder crack.
• Complete no-signal failure — Console powers on, but HDMI port sends nothing to the TV. Solder joint broken or pin bent.
• Tight cable fit — New HDMI cable doesn't seat properly, or cable wiggles around loosely in the port.
• Charred or burned contacts — Usually from a power surge or electrical damage. Port contacts are blackened or fused.

What Happens When You Bring Your PS5 to PHYX

Step 1: Diagnosis

We inspect the HDMI port under magnification, test the console with our diagnostic board, and identify the exact problem. Most diagnostics take 1-5 minutes.

Step 2: Quote and approval

We explain what's damaged, show you options (repair vs. replacement), and give you a clear price. You approve before we start.

Step 3: Repair

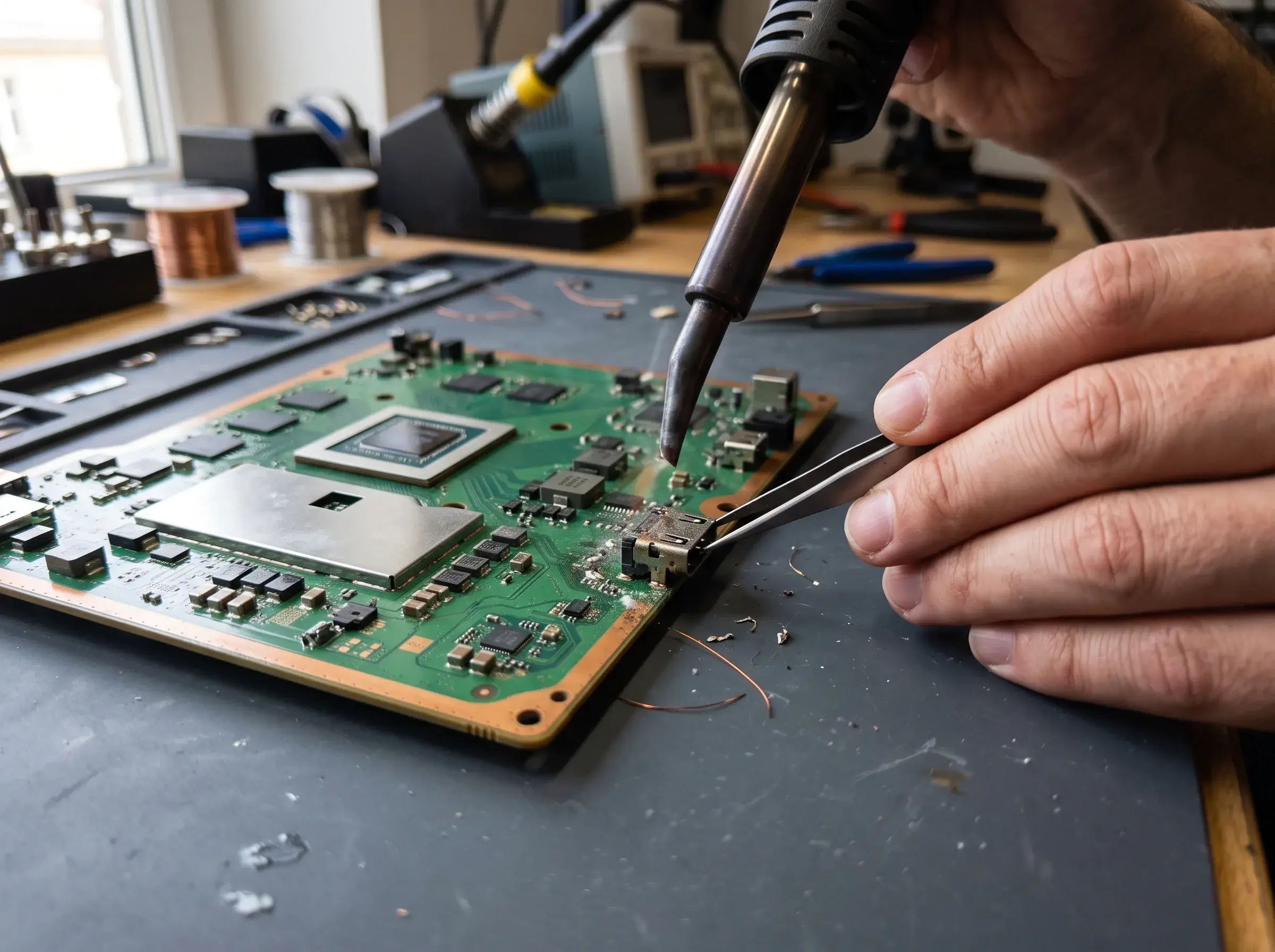

We desolder the old port, clean the area, install a new port assembly, re-flow solder joints, and run thermal checks to ensure no damage to surrounding components.

Step 4: Testing

Your console connects to the TV, displays video, and we test all connectivity features (USB ports, power, controller sync).

Step 5: Guarantee

Let us know if you have any issues.

When to Replace Your PS5 Instead of Repairing It

All basic repair makes sense on the PS5. Replacement might make sense if:

• Your console has suffered extensive water or electrical damage
• The motherboard has burned or warped beyond recognizing
• You'd rather have a brand-new warranty than a repair guarantee

Most HDMI port failures are isolated. Repair is the smarter choice financially and environmentally.

Questions? Let's Connect

PHYX Device Repair
95 Mill Street, Springfield, MA 01108
Located in the Mill Park Office Commons (look for the green sign)

Phone: 413-234-4313

Hours:

• Monday–Friday: 10:00 AM – 7:00 PM
• Saturday: 12:00 PM – 7:00 PM

Drop off your PS5 anytime. We'll diagnose it the same day and give you a repair quote within minutes.

Next Step: Bring Your PS5 to PHYX Today

If your PS5's HDMI port is dead or super wiggly/broken, don't buy a new console. PHYX handles this repair regularly in Springfield and across the Pioneer Valley.

We'll diagnose it free, quote you fairly, and get your console back online in 1-2 business days.

Visit us at 95 Mill Street in Springfield, or call 413-234-4313 to ask about your PS5. Let us know what's happening and we'll walk you through the next step.

FAQ

How much does a PS5 HDMI port repair actually cost?

Typical cost is up to $170, depending on extent of damage. Diagnostic work is free. If we determine the port can't be repaired economically, we'll tell you upfront and recommend replacement. Call 413-234-4313 or visit us in Springfield to get an exact quote for your console.

Is PHYX's PS5 HDMI repair cheaper than Sony's?

Sony doesn't repair HDMI ports—they replace entire consoles, which costs $500+. PHYX replaces just the damaged port for up to $170. Plus, you get it back in 1-2 business days instead of weeks.

How long does PS5 HDMI port repair take?

Most repairs are completed within 1-2 business days in Springfield. Some things can be done same-day. Drop off your console and we'll give you a realistic timeline before we start work.
