PS5 and Xbox Controller Stick Drift: How Hall Effect Sticks Fix It for Good
Why PS5 and Xbox controller sticks drift, how magnetic Hall effect sticks stop it, and what PHYX charges to swap them in.
Your character walks off on their own. The camera creeps to the left while your thumb sits still. You recalibrate, blow into the stick, and it comes back a week later.
That is stick drift. On a standard PS5 DualSense or Xbox Wireless Controller, it is a wear problem inside the stick. Cleaning and calibration can hide it for a while. A new stick module fixes it, and a magnetic Hall effect module keeps it from coming back the same way.
Why PS5 and Xbox Controller Sticks Drift

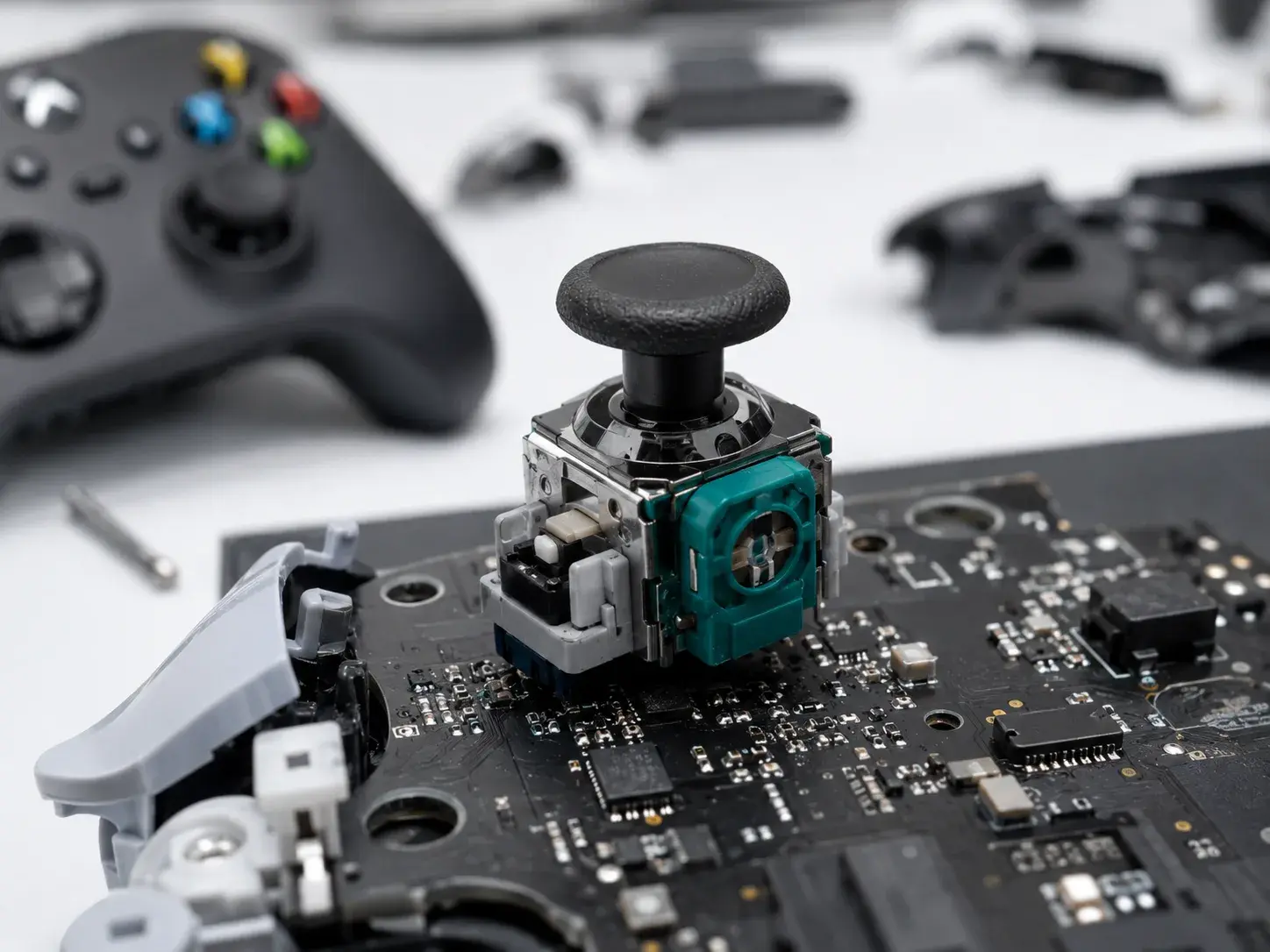

Each analog stick sits on two small sensors called potentiometers. One reads left and right. The other reads up and down. Inside each one, a metal wiper slides across a printed carbon track, and the controller reads the voltage to work out where your thumb is.
That wiper rubs the track every time you move the stick. When iFixit took apart a DualSense to find the cause of drift, they found the track wears unevenly. The readings go off, and the controller thinks the stick is pushed when it is not.
The same teardown names other causes too:
- Spring fatigue. The centering springs stretch, so "center" is no longer center.
- Dust and debris from the plastic parts and from outside.
- Loose plastic from years of pushing the stick against its limits.
Xbox Series controllers use the same kind of potentiometer stick. So do most standard controllers. That is why drift shows up on both brands.
What a Hall Effect Stick Does Differently
A Hall effect stick puts a small magnet on the moving part of the stick. A sensor on the circuit board reads the magnet's position through the air. The Hall effect is the physics behind it: a magnetic field changes the voltage across a sensor, and that change tells the controller where the stick is.
Nothing rubs against a track, so there is no track to wear down. That removes the main cause of drift.
You will also see TMR sticks sold for the same job. TMR stands for tunnel magnetoresistance. It is a different magnetic sensor that works on the same contact-free idea. GuliKit sells TMR replacement sticks for Xbox Series controllers, for example. We install Hall effect sticks today, and we expect to offer TMR soon.
| Standard stick (potentiometer) | Hall effect or TMR stick | |
|---|---|---|
| How it reads position | Metal wiper slides on a carbon track | Sensor reads a magnet, no contact |
| Main wear point | The carbon track | Springs and plastic only |
| Dust inside the sensor | Can cause jumpy readings | Does not affect the magnetic reading |
| Common fix when it drifts | Replace the stick again | Rarely needed for drift |
Magnetic sticks are not indestructible. A hard drop can still crack the stick housing, and springs still age. They remove the part that wears out fastest.
Why the Repair Takes Soldering
On a standard DualSense, each stick is soldered to the main board. iFixit counted 16 solder joints per stick. Xbox Series controllers are soldered too.

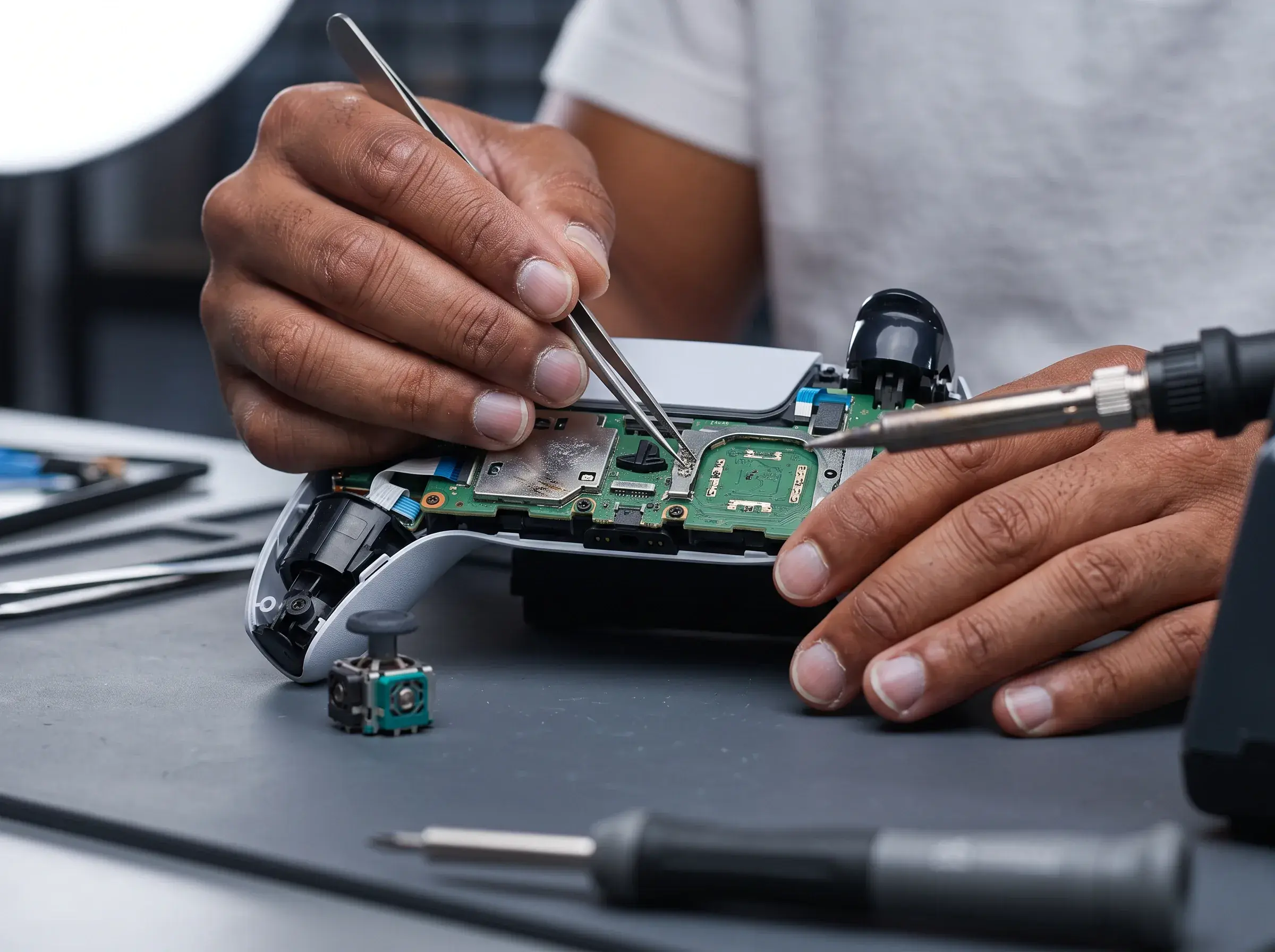

So this is not a snap-in part. We remove the old stick module from the board, clean the pads, and solder in the magnetic module. Then we test the full range of the stick on both axes before the controller goes back to you.
Sony's DualSense Edge is the exception. It has stick modules you can swap by hand. Most people are not holding one, though.
What Stick Drift Repair Costs at PHYX
| Controller | Price | Turnaround |
|---|---|---|
| PS5 DualSense | $50 flat | About 3 to 4 days |
| Xbox Series X/S controller | $50 flat | About 3 to 4 days |
| Xbox Elite or other pro controllers | Higher. It depends on what our parts provider can supply for that model. | Ask when you drop it off |
The $50 covers both sticks on a standard controller. We do not do this repair on older Xbox One controllers.
If you decide a new controller makes more sense, that works too. Skip the repair, and we take $10 off any PS5 or Xbox controller we have in stock.
Repair or Replace?
Repair usually makes sense when:
- The only problem is drift.
- You like your controller, or it has a color or setup you want to keep.
- You want sticks that will not drift the same way again.
Replacement can make more sense when the shell is cracked, buttons are dead, or the battery no longer holds a charge. A new standard controller ships with potentiometer sticks again, so it starts the same wear clock over.
FAQ
Q: Can I fix stick drift myself by cleaning or recalibrating?
A: Sometimes, for a little while. Compressed air or recalibration can help when dust is the cause. When the carbon track is worn, the drift comes back, because nothing replaced the worn part. If you have cleaned it and the drift returned within a few weeks, the stick itself is the problem.
Q: Do Hall effect sticks feel different from the original sticks?
A: They are built to match the original stick height and travel. Tension and stick caps can still feel slightly different, depending on the module and the controller. On some Xbox Elite kits, the original caps do not fit and the kit's caps go on instead. If feel matters to you for competitive play, tell us at drop-off and we will tell you what to expect.
Q: Does this work on Xbox Elite controllers?
A: Usually, yes, but the price is not the $50 flat rate. Elite controllers use different stick parts, and the cost depends on what our parts provider can supply for that model at the time. Bring it in or message us with the exact model, and we will quote it before any work starts.
Get Your Controller Back Without the Drift
If your PS5 or Xbox controller drifts, it is a $50 fix at our Springfield shop on most standard controllers, with about a 3 to 4 day turnaround.
Have a question first? Call PHYX at 413-234-4313 or contact PHYX on Facebook.
